RS46 Mirrored Sighting Compass with Declination Adjustment, Clinometer & Map LED
Couldn't load pickup availability
The RS46 full-size Sighting Mirror Compass includes all the features you would expect from a professional sighting compass and is perfect for serious users as well as those new to compass orienteering. Hikers, backpackers, climbers, Boy Scouts and search-and-rescue personnel will find this to be loaded with professional navigation features. The crystal clear mirror features an etched centerline, top targeting v-sight, and a small centered sighting hole that allows you to take precise navigational readings, and folds flat for protection. The luminous glow-in-the-dark bezel features 2-degree graduations and a top-side gear-driven declination adjustment so that you can precisely adjust for regional magnetic variations from true North using the included key/tool. The liquid-filled dial features a quick-dampening needle with luminous points, an integrated inclinometer, map alignment lines, and a northern aligned boxed arrow for needle placement. The baseplate features an inch scale, cm/mm scale, magnifying lens, rubber feet, 1:2400 map scale, and a 1:5000 map scale. The included neck lanyard allows you to keep it easily accessible and features a disconnect buckle so you can easily detach it for map work. To assist with low light or nighttime navigation, we've included a mini LED light with a clip so you can keep it attached to the lanyard or pack. A thorough and easy-to-follow guide is also included.
Please note that this unit is balanced for use in the Northern Hemisphere only (incl. North America).
- ADJUSTABLE DECLINATION - Using the included key tool, you can easily adjust for the local variation between true North and magnetic North.
- CLINOMETER - For measuring slop angle of the terrain such as hillsides and mountains
- MIRRORED - The reflective compass mirror can also serve as a flash signal mirror in an emergency situation.
- MAP LIGHT - The included micro LED helps map reading in low light conditions and activates the luminous glow features on the compass
We stand by all of our products with a no-hassle guarantee; if you're not satisfied for any reason we'll make it right.
Technical Specs:
- Weight: 3.0 oz | 85 g
- Dimensions: 2.5" x 4.25" x .68" | 6.5 x 11 x 2 cm
- Resolution: 2˚in MILS
- Map Scale: 1:2400, 1:5000
- Adjustable Declination?: Yes
- Phosphorescent Markings?: Yes
- Clinometer?: Yes
- Material: Plastic
- Package Contents: (1) Compass, (1) Detachable neck lanyard, (1) Micro LED light, (1) Micro Adjustment tool, (1) Mini Screwdriver, (1) User guide.
- Part Number: CB-202053

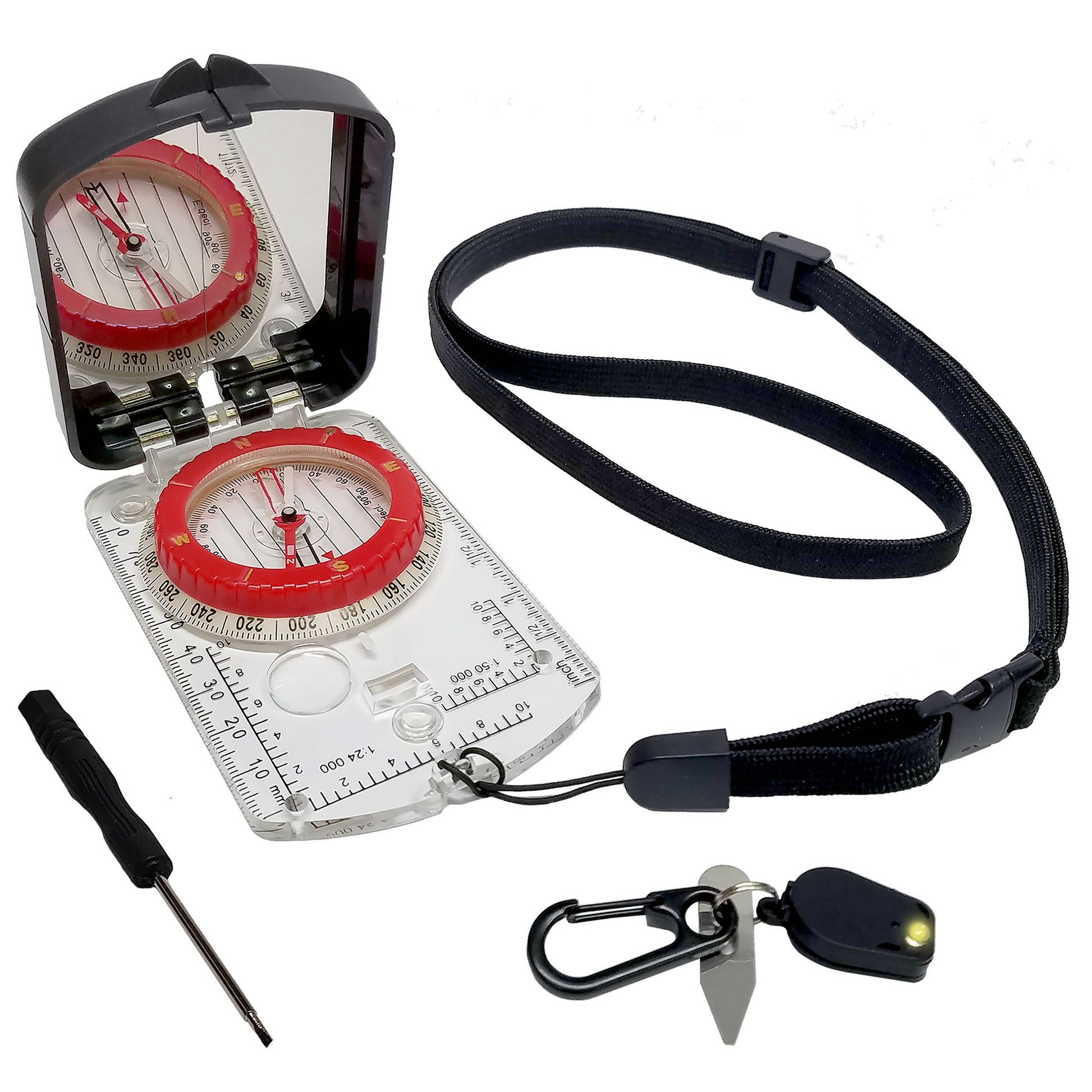

![Coopers Bay RS46 Mirrored Sighting Compass is loaded with professional features](http://coopersbay.com/cdn/shop/files/154700_Main2k_56e3c02a-5fc1-4331-b87d-954abfcc83e7_1445x.jpg?v=1697064739)

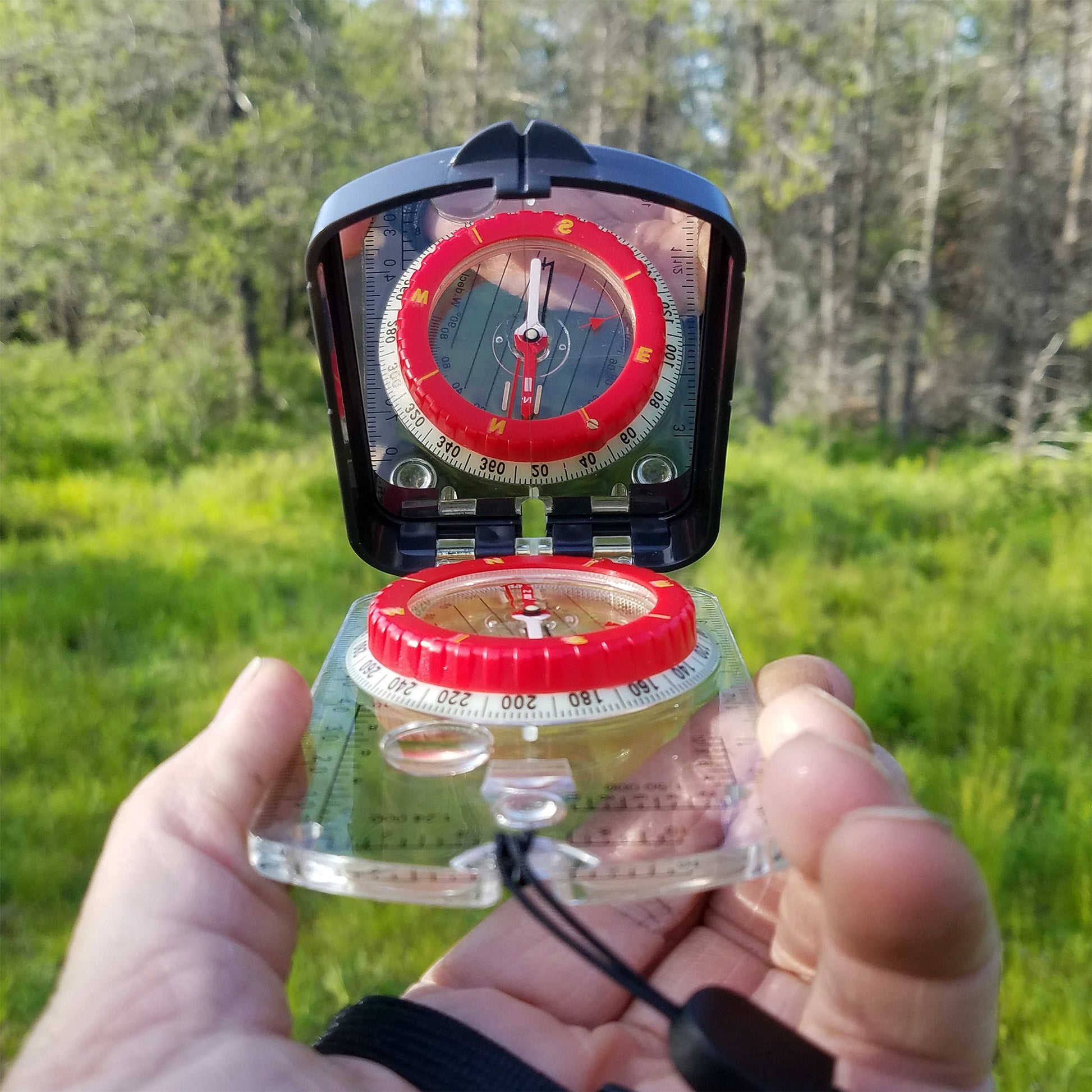

![The RS46 Mirrored sight compass has all the professional features needed for accurate map navigation](http://coopersbay.com/cdn/shop/products/182004_Holding2k_1445x.jpg?v=1697064739)

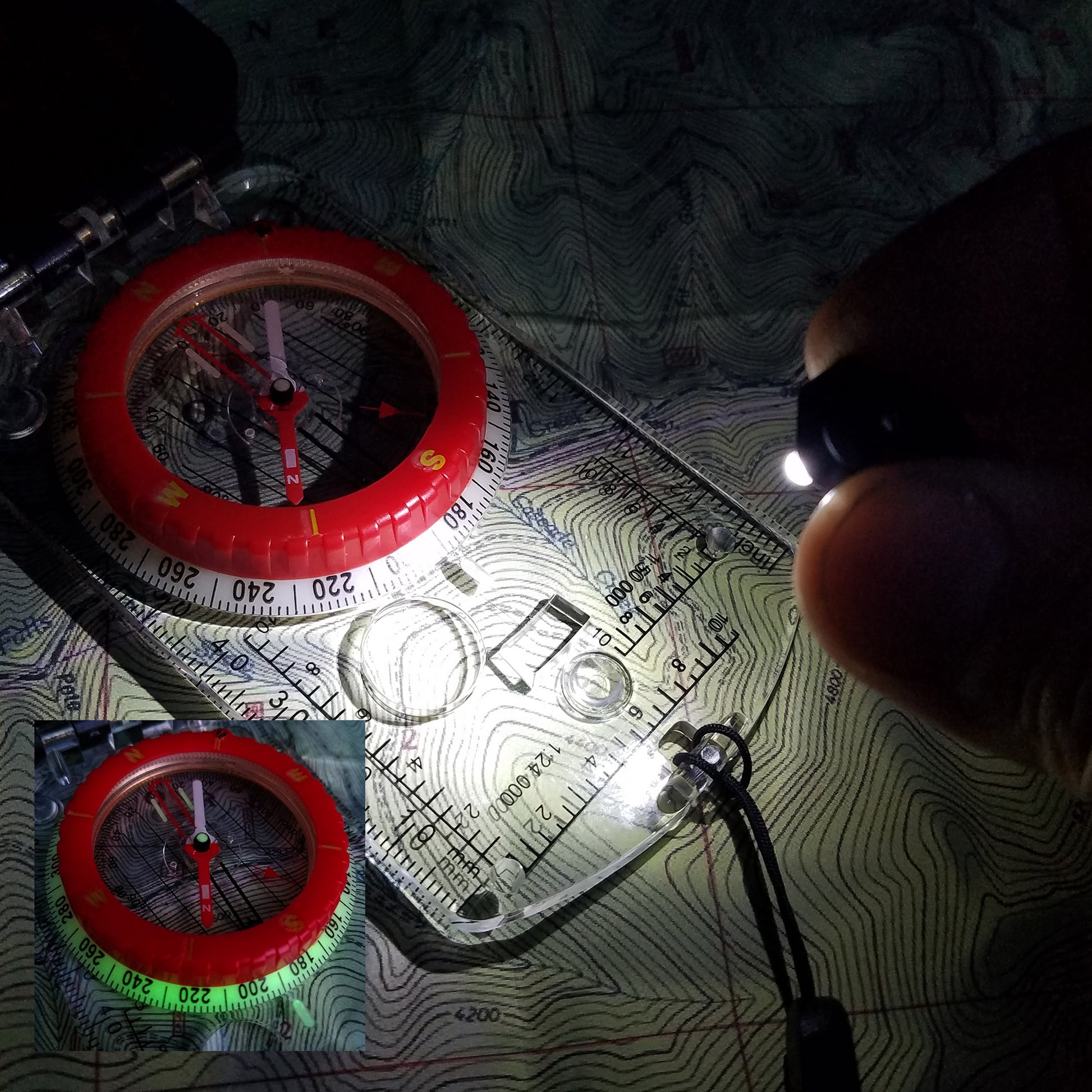

![RS46 Baseplate Compass with Map LED](http://coopersbay.com/cdn/shop/products/210120_Light2k_1445x.jpg?v=1697064739)

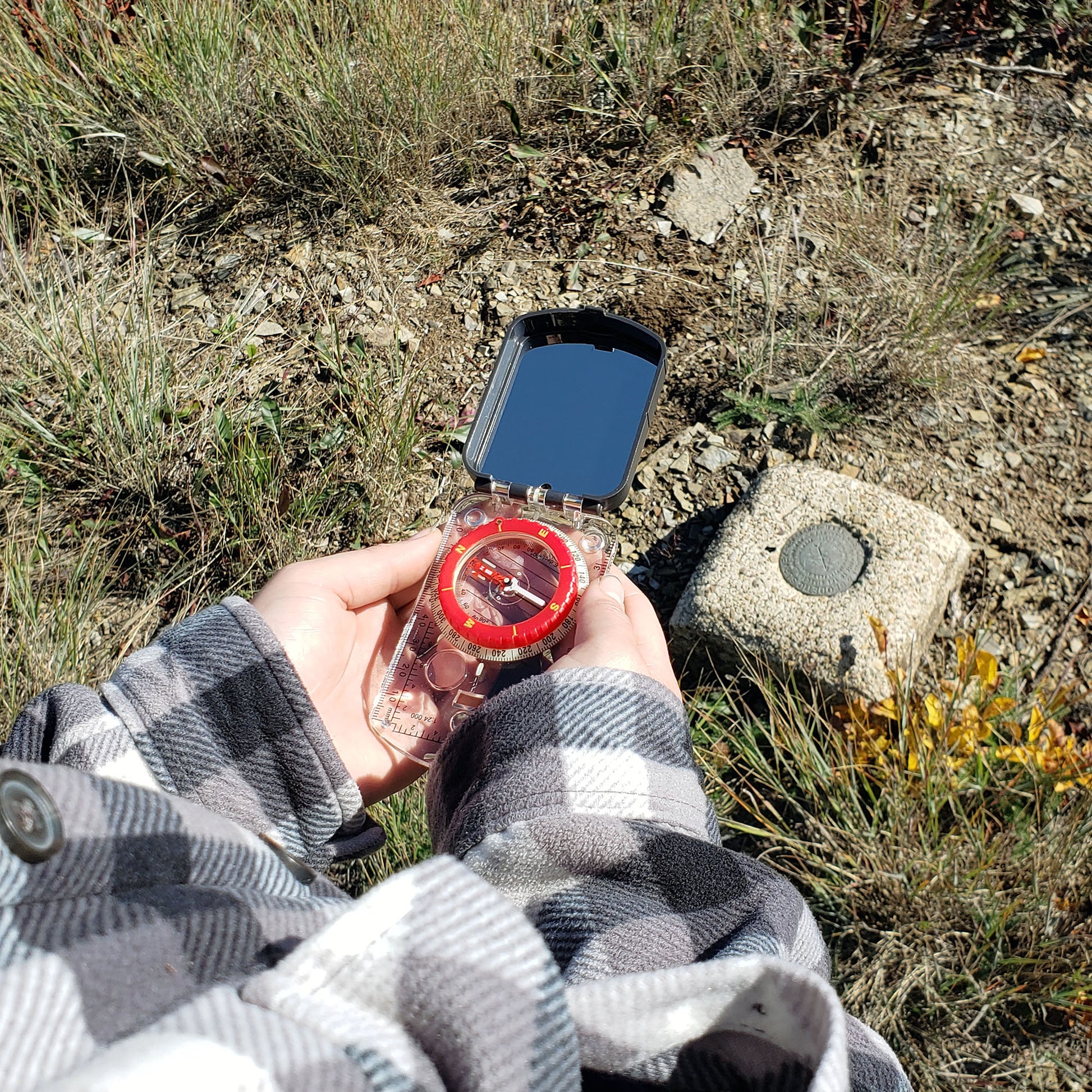

![how to hold a compass](http://coopersbay.com/cdn/shop/files/110011orienteering2k_1445x.jpg?v=1697064739)

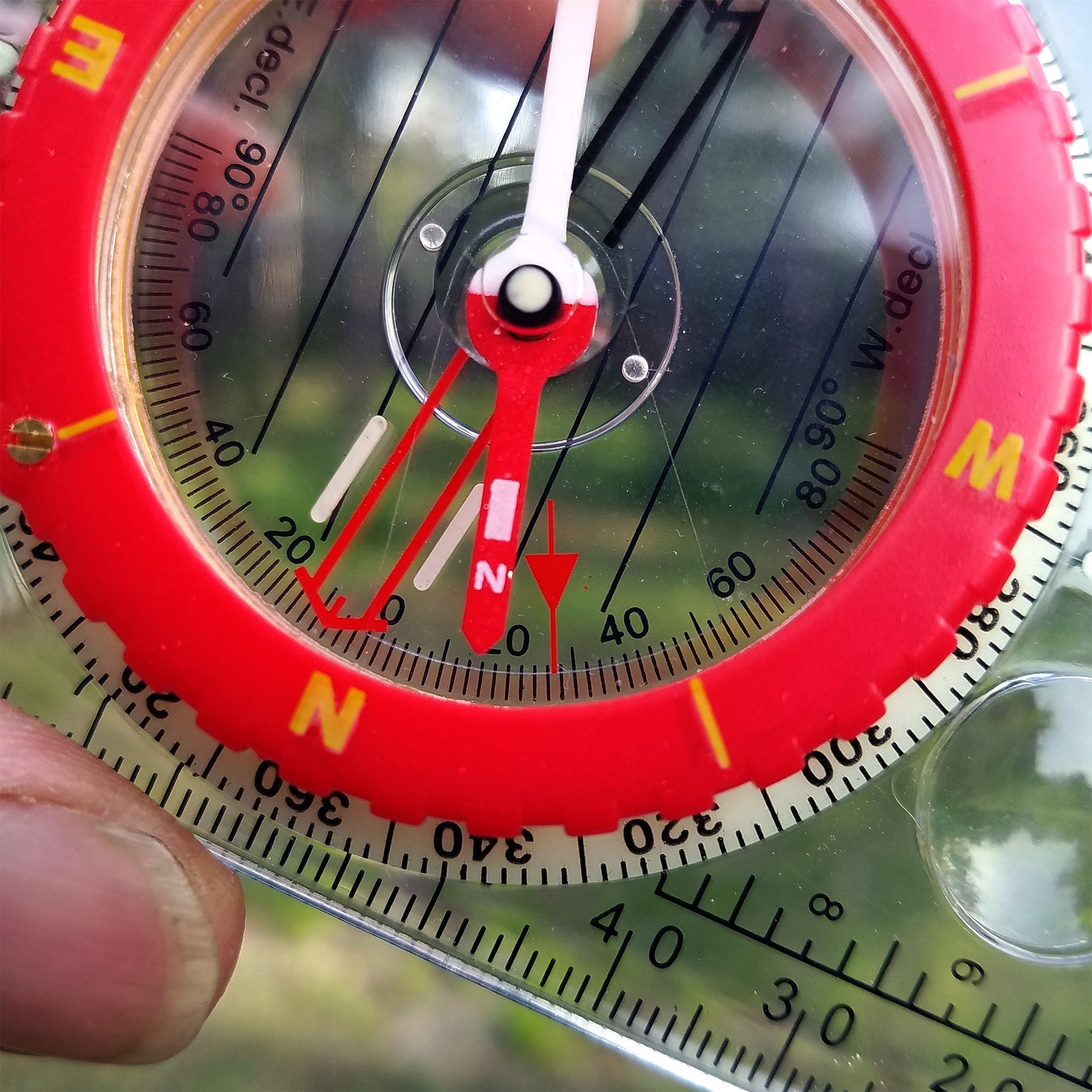

![RS46 Compass with Clinometer for measuring the angle of slopes and hillsides](http://coopersbay.com/cdn/shop/products/182738_Slope2k_1445x.jpg?v=1697064739)

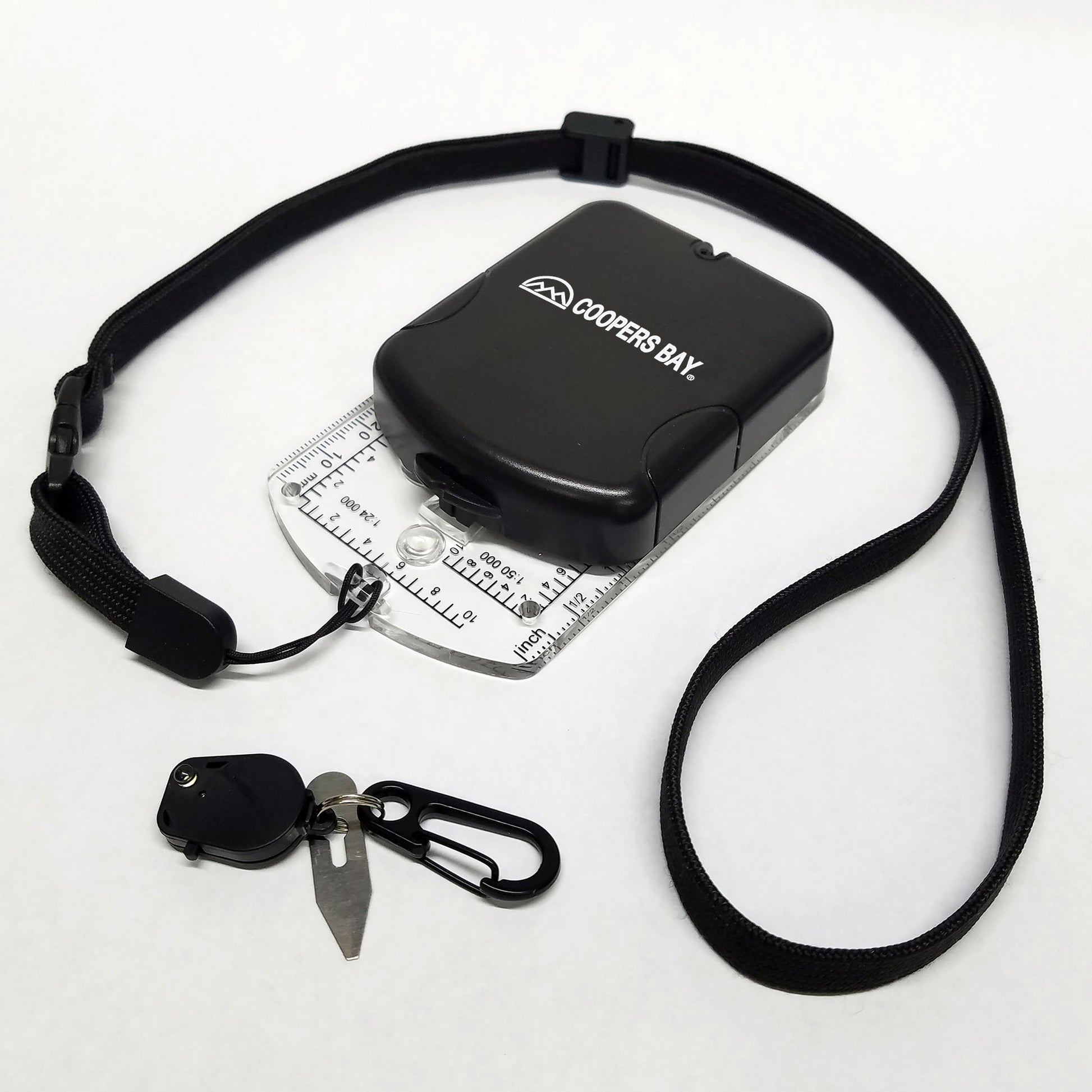

![RS46 Mirror sight compass by Coopers Bay](http://coopersbay.com/cdn/shop/files/154310_coverclosed2k_595ec45f-a85a-44f0-bb55-75c80018eca4_1445x.jpg?v=1697064739)

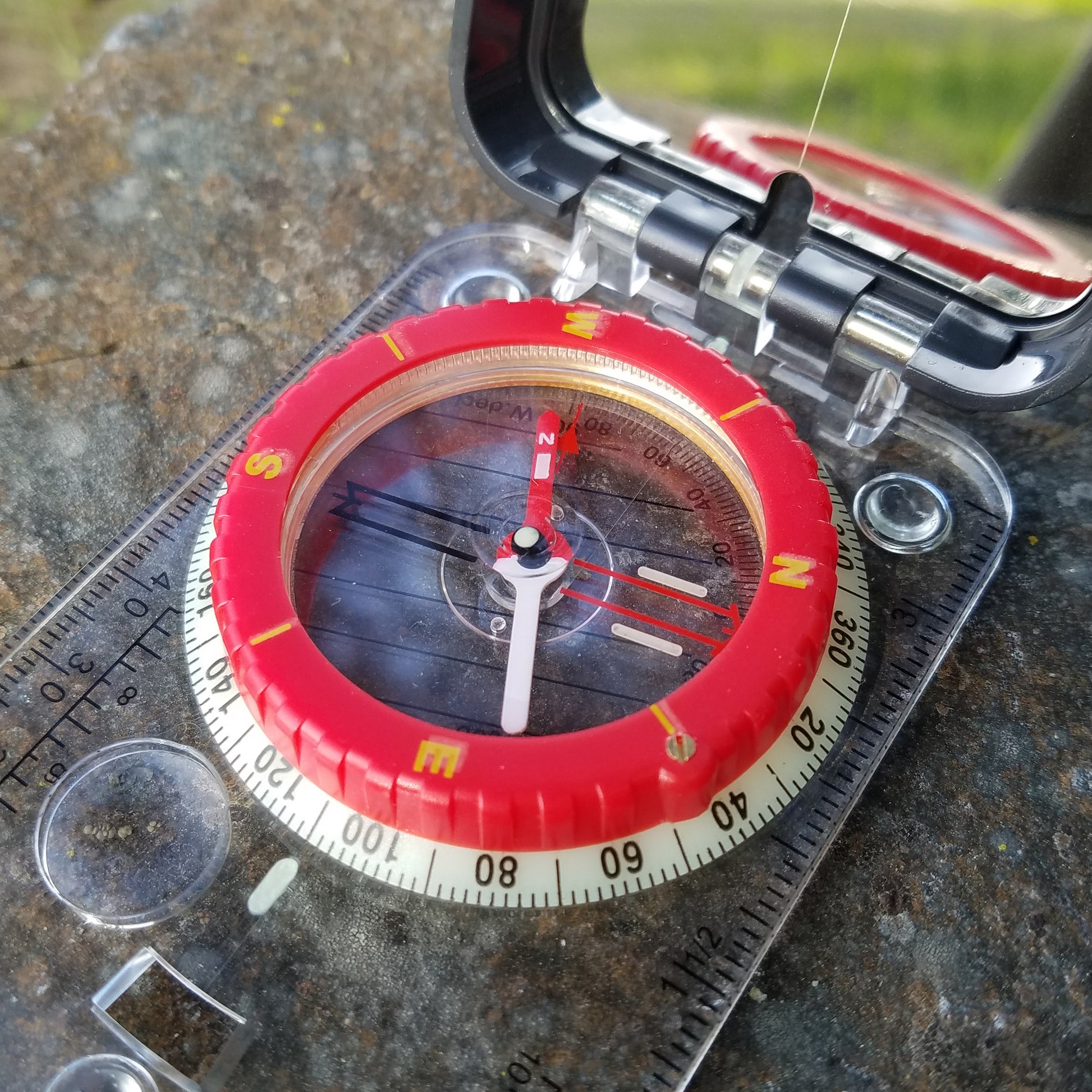

![RS46 Folding Compass with adjustable declination, map scale and magnifying lens](http://coopersbay.com/cdn/shop/products/182602_Closeonrock3k_1445x.jpg?v=1697064739)

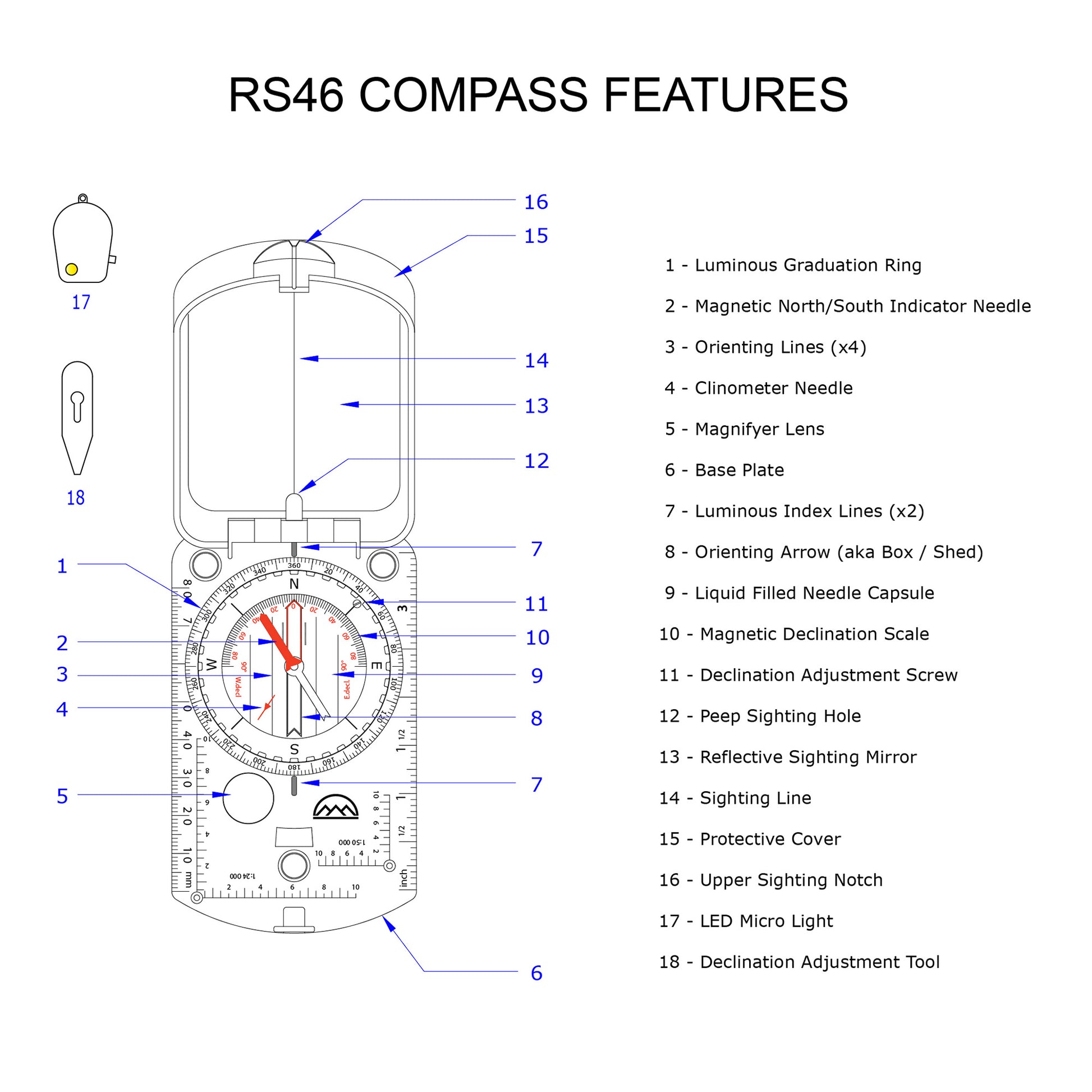

![Coopers Bay RS46 Mirrored Orienteering Compass Feature Diagram](http://coopersbay.com/cdn/shop/products/CompassFeatures2k_01e7a387-debb-41e4-8b08-966d3a4d98c1_1445x.jpg?v=1697064739)
